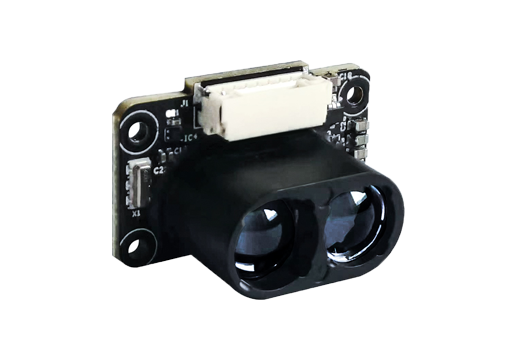

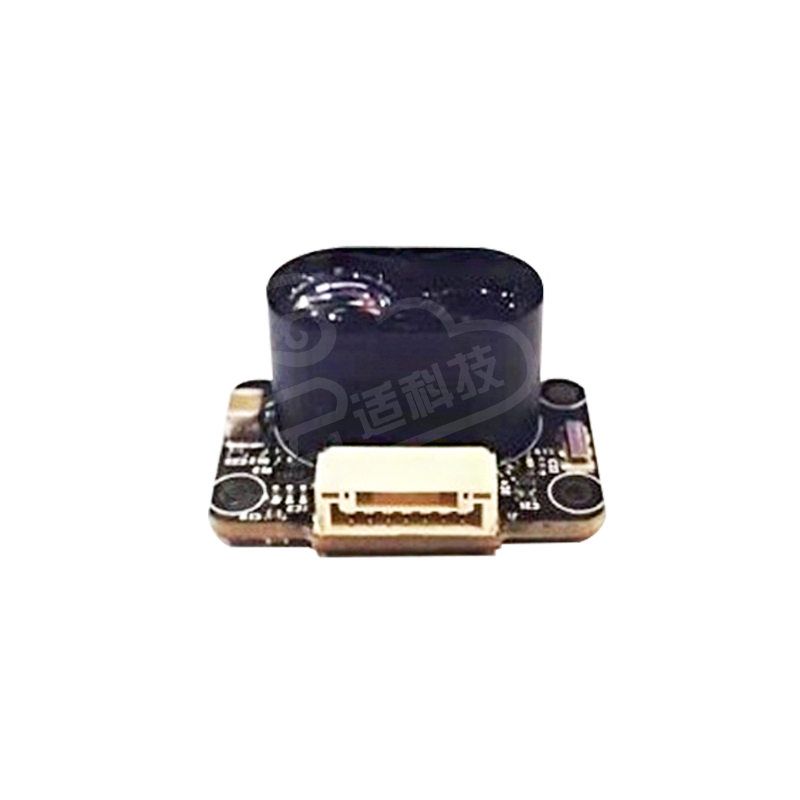

MVR3EBD is a cost-effective ranging module of MoeVision Ranger 3 series. It adopts TOF(Time-of-Flight) technology, 940nm VCSEL light source, and is designed with unique optics, electronics and structure. High speed ranging from 0.3 to 14 meters /28 meters can be achieved (indoor and outdoor). Provides HEX and ASCII UART serial port output data formats. The module uses PCBA+ lens support structure, which is small in size and easy to install, and can be easily built into the overall structure.
Advantages and characteristics
?measuring distance: 0.3 to 14 m / 0.3 ~ 28 m
?measurement speed: 1 ~ 200 hz is adjustable

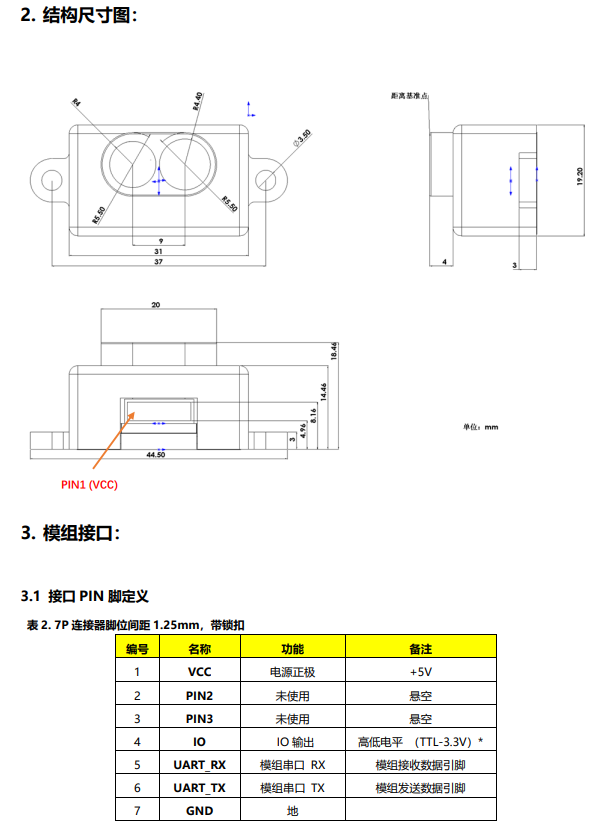

?small size: 28.1 * 16 * 17.6 mm
?weight: 6 g
